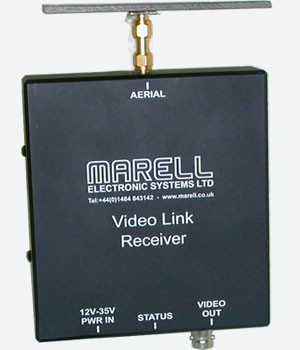

Videolink 1.384GHz Receiver

1.394GHz Videolink Receiver: MVL-1394RX

1.394GHz FM Video Receiver , exceptional sensitivity, and high quality reception when used in conjunction with the MVL-1394TX

Transmission power: 150mW EIRP minimum

Frequency: 1.394 GHz W.T. Licence Exempt

IF Bandwidth: 15MHz

Sensitivity: -80dbm for 20db S/N

Signal loss: typically <-95dbm

Video output: Composite Colour

Video Level: 1V pk-pk into 75R

Video Bandwidth: 6MHz

Current Consumption: ~250mA @ 12V

Operating Temperature: -20° C / 60° C

Antenna Connector SMA

Video Conn B.N.C

Power RX 2 Pin Lemo 1BPin1=12-35V, Pin2=GND

Weight: 350g

150mm x 150mm x 33mm

CE Marked
