Frameline Generator: DL-DFL

Digital Frameline

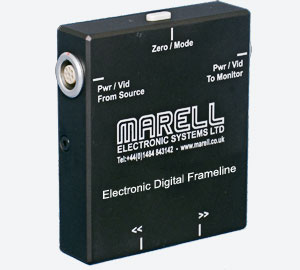

Marell would like to introduce you to the finest, most advanced, fully programmable digital frameline generator; It is designed to be positioned anywhere on Body Mounted Camera Stabilisation systems including Steadicam©,Glidecam©, PRO©, Sachtler© and many other rigs, as well as stand alone monitors and crane monitoring systems.

The DL-DFL measures just 62mm wide, 72mm high and 16mm deep and weighs in at less than 100 grams. Yet there are many features packed into this small box.

For instance; Quad Framelines: with fully independent settings, allows you to change Position, Width of line and brightness of Black and White zebra, even alter the length of the segments of the frame Lines, fade them or turn them on or off. Variable Transparency of Frameline.

Border Mask: Fully adjustable for brightness and transparency.

Crosshair: 7 different styles in 2 modes giving 14 Xhair selections in total.All scaleable, size as you wish, Change colour from Black to white, Zebra. Position anywhere on the screen, Make translucent.

No Video: When there is no Video signal present, the unit will generate its own grey-scale test pattern bars and no video display and also works in test mode without a video source.

Battery Indicator: Graphically indicated Voltage level, Scaleable and Positionable anywhere on the screen.

Memories: Custom setting pages to store the setting for eight different cameras, in PAL and eight in NTSC.

Optional Video Distribution Amplifier: Up to 2 additional Video Outputs with or without the OSD,on 4pin (HR10 -Hirose) connectors.
