Equipment for professional stabilisation system operators

14V-26V Power Converter for Master: PC-1426M

Need more power?

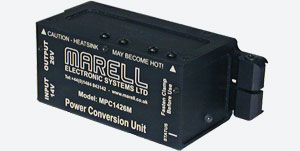

The Marell MPC1426M was designed to fit directly on the Steadicam Master converter dovetail plate, and replaces the factory unit (if fitted) with a much more powerful solution. This unit allows the powering of any standard 24V camera (including the ARRI 435 etc) and has enough in reserve to allow high film speed and cold starting with fresh batteries.

Attractively packaged, the MPC1426M has a status indicator that allows monitoring of Battery and converter operation, and also shows error conditions, should a cable go faulty, or the battery is flat.

Please note that the MPC1426M provides a regulated 26V supply to the Camera through the exsisting Steadicam wiring but does not provide the isolated 12V supply for the rarely used high speed bases.
